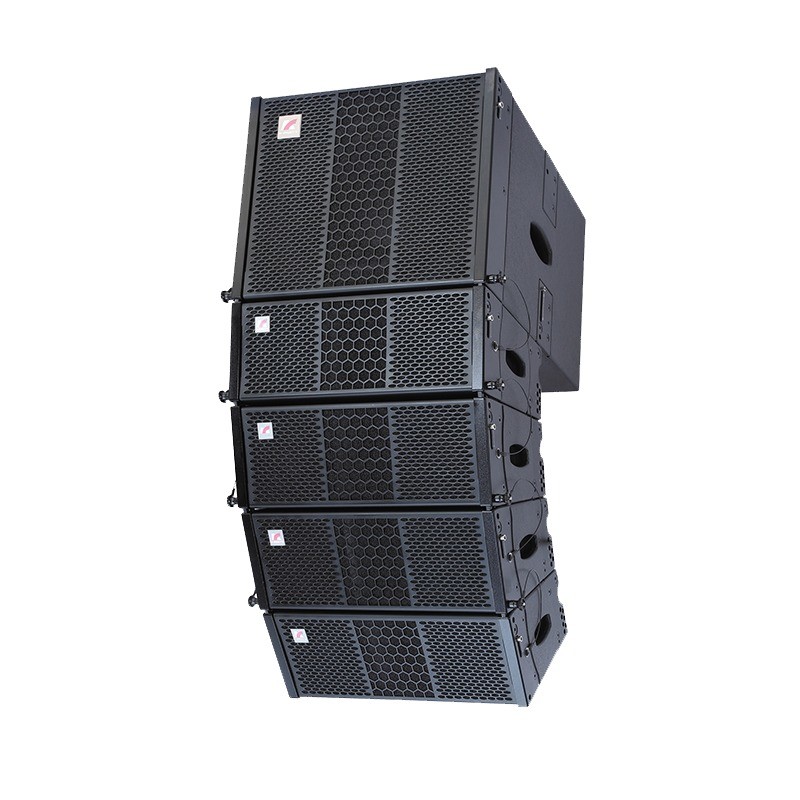

FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker

FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker

  • FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker
FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: FL-205、FL-112S
Contact Now
Detailed Product Description
Color: Black Type: Monitor Studio BT Speaker,Line Array Professional Speaker,subwoofer Speaker,Professional Audio,acrylic Audio Speaker
Frequency Response: 45 Hz - 20 KHz,75Hz - 18kHz(±3dB) Size: 416x159x229mm
Application: Music Concert,Portable Compact PA,Recording Studio,theatre,ktv
Highlight:

FL-205 professional audio speakers

,

FL-205 professional audio speaker

,

FL-205 linear array speaker

FL-205,FL-112S



FL-205,FL-112S

FL-205 is a small volume, loud linear array speaker, specially designed for small and medium-sized performances, music bars and other voice reinforcement, with accurate coverage angle. Two 5.5-inch selvedge high-efficiency strong magnetic middle bass units, one 1.5-inch tweeter driver, professional sound lens horn, and birch plywood box are used to restore the audio signal within the specified frequency range. It is also equipped with excellent hoisting accessories, which makes the installation of the whole system simple and fast.



FL-112S is a single 12 inch direct projection ultra-low speaker. It adopts a 12 inch neodymium magnetic bass unit with rubber edge, which is carefully designed with birch plywood box; The hanging system is made of aluminum alloy, which can be hung and overlapped with FL-205 to improve the low-frequency performance of the system. It is very convenient for on-site installation and hanging.



TECHNICAL DATE

TECHNICAL DATE FL-205 dual 5.5 inch linear array FL-112S
Type Line array full-range speakers Line array subwoofer
Drivers LF: 2 x 5.5" HF: 1 x 1.5" LF: 1 x 12"
Frequency Response 75Hz - 18kHz(±3dB) 40Hz - 200Hz(±3dB)
Rated Power 200W 500W
Nominal Impedance 8 Ohm 8 Ohm
Sensitivity(1W/1M) 96dB 99dB
Input Connectors 2xNL4 Speakon 2xNL4 Speakon
Maximum SPL 120dB 126dB
Dispersion(-6dB) 90°H x14°V /
Crossover 1.8 kHz /
Riggings Standard hanger Standard hanger
Dimensions(W×H×D) 416x159x229mm 416x352x430mm

CONSTRUCTION DRAWING

FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker 0

Application scenario

FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker 1FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker 2FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker 3FL-205、FL-112S Professional Audio Speakers Small Volume Loud Linear Array Speaker 4
