10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B

10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B

  • 10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B
10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: FL-210、FL-118B
Contact Now
Detailed Product Description
Sensitivity: 103dB 101dB Power Output: 500W 800W
Dimensions: 796x265x480mm 796x508x700mm Frequency Response: 20Hz-20kHz
Impedance: 8 Ohms Color: Black
Type: FL-210 FL-118B Input Connectors: 2xNL4 Speakon
Highlight:

10 Inch Professinal Audio Speaker

,

10 Inch linear array speaker

,

High Precision Linear Array Speaker

FL-210,FL-118B



FL-210,FL-118B

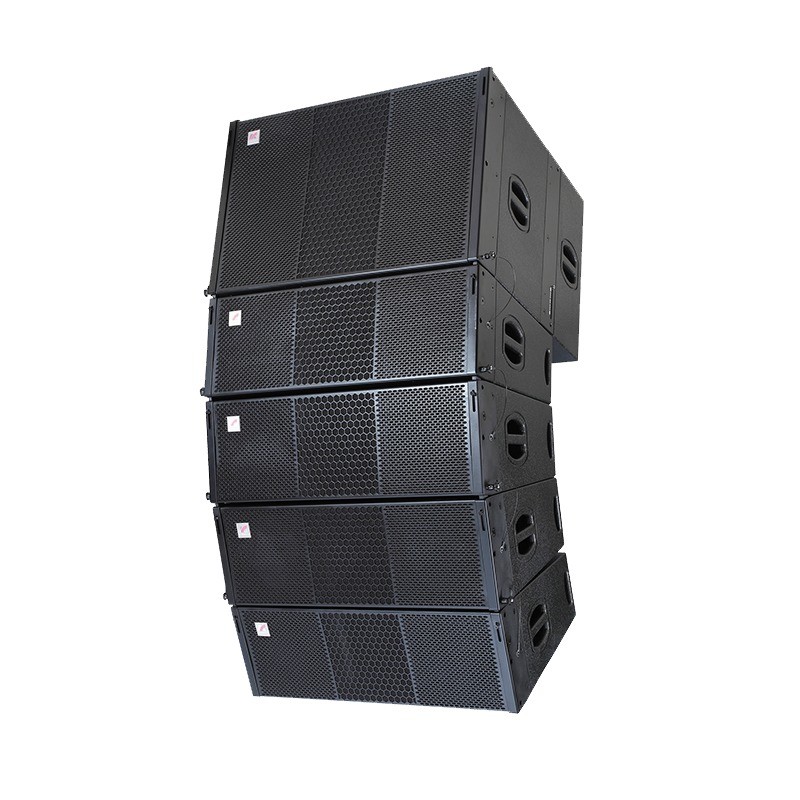

FL-210 is a large high-precision linear array speaker. It uses two 10 inch high efficiency neodymium magnetic subwoofer units and a 1.4 inch throat 75 core neodymium magnetic tweeter driver, which can restore the sound field to the maximum. With the multi-layer composite plywood box, the whole system is simple and atmospheric, and is suitable for performance with broadband requirements. It is also equipped with excellent hoisting accessories, which makes the installation of the whole system simple and fast.



FL-118B is an 18 inch labyrinth ultra-low speaker. A 18 inch neodymium magnetic woofer is used. The suspension system is made of aluminum alloy. In combination with FL-210, it can be hung and stacked to improve the low frequency performance of the system. The box body is made of multi-layer composite plywood and polyurea spraying.



TECHNICAL DATE

TECHNICAL DATE FL-210 double 8-inch linear array FL-118B
Type Line array full-range speakers Labyrinth subwoofer
Drivers LF: 2 x 10" HF: 1 x 3" LF: 1 x 18 "/4 inch voice coil
Frequency Response 65Hz - 18kHz(±3dB) 35Hz - 150Hz(±3dB)
Rated Power 500W 800W
Nominal Impedance 8 Ohm 8 Ohm
Sensitivity(1W/1M) 103dB 101dB
Input Connectors 2xNL4 Speakon 2xNL4 Speakon
Maximum SPL 100dB 103dB
Dispersion(-6dB) 90°H x14°V /
Crossover 1.3 kHz /
Riggings Standard hanger Standard hanger
Dimensions(W×H×D) 796x265x480mm 796x508x700mm

CONSTRUCTION DRAWING

10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B 0

Application scenario

10 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B 110 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B 210 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B 310 Inch Professinal Audio Speaker Large High Precision Linear Array Speaker FL-210 FL-118B 4
