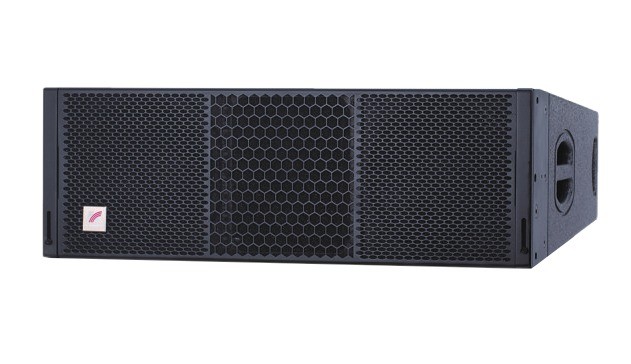

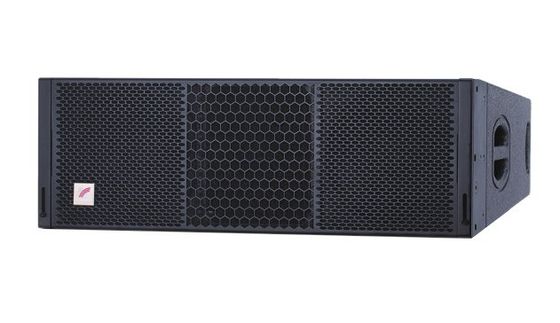

FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension

FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension

  • FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension
FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: FL-212
Contact Now
Detailed Product Description
Type: Double 12 Inch Linear Array Frequency Response: 55Hz - 18kHz(±3dB)
Crossover Frequency: 2.5kHz Rated Power: 800W
Dimensions: 900×340×490mm Sensitivity: 101dB
Color: Black Impedance: 8 Ohms
Highlight:

Three Point 12 inch line array speaker

,

Dual 12 inch line array speaker

,

FL-212 12 inch liner speaker

FL-212



FL-212

FL-212 is a dual 12 inch line array speaker specially designed for high standard sound reinforcement requirements, with three-point suspension built-in frequency division, and a 75MM titanium composite diaphragm neodymium magnetic compression driver. It not only has good transient response of metal materials and bright and thorough texture, but also has low distortion of polyester fiber film. It is the best choice for large-scale performances, theaters, gymnasiums and bars.



TECHNICAL DATE

TECHNICAL DATE FL-212 double 12 inch linear array
Type Line array full-range speakers
Drivers LF: 1 x 12" HF: 1 x 3"
Frequency Response 55Hz - 18kHz(±3dB)
Rated Power 800W
Nominal Impedance 8 Ohm
Sensitivity(1W/1M) 101dB
Input Connectors 2xNL4 Speakon
Maximum SPL 133dB
Dispersion(-6dB) 90°H x10°V
Crossover 1.3 kHz
Riggings Standard hanger
Dimensions(W×H×D) 900×340×490mm

CONSTRUCTION DRAWING

FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension 0

Application scenario

FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension 1FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension 2FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension 3FL-212 Dual 12 Inch Line Array Speaker With Three Point Suspension 4
