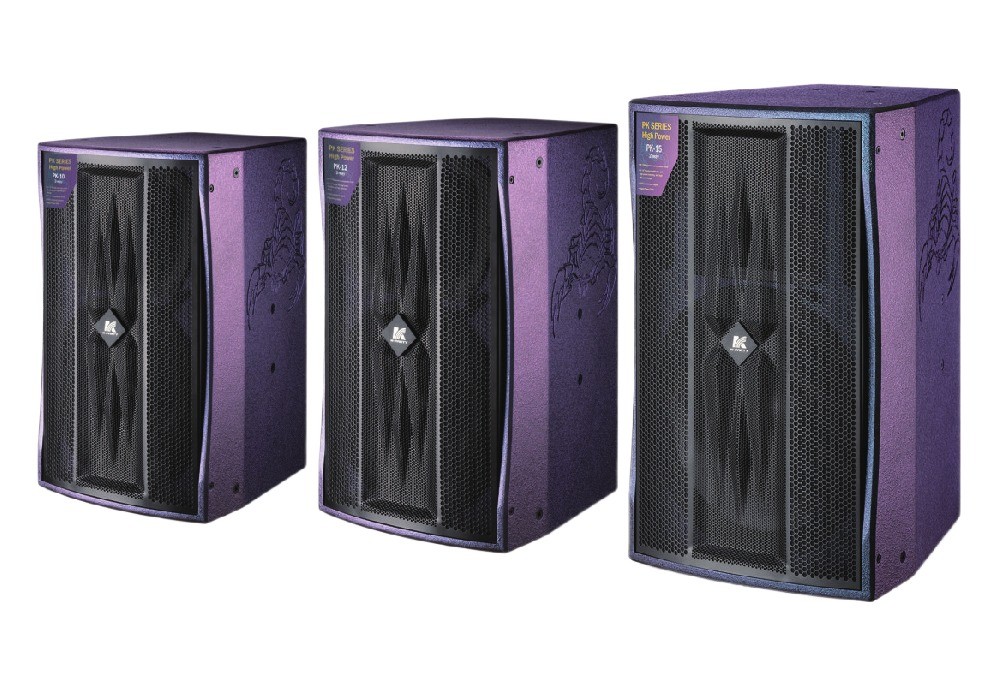

PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches

PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches

  • PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches
PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: PK Series
Contact Now
Detailed Product Description
Highlight:

Two Way full frequency speaker

,

Plywood Box full frequency speaker

,

PK Series full frequency speaker

PK Series



PK Series

PK series combines many practical application experiences. The thunderous bass effect is an ideal choice for DJs and sound engineers. It is difficult to obtain such bass power in the same level of speakers. PK series adopts low-frequency reflective design and long stroke design. The same sound pressure is not distorted. Under the great dynamic of music, the microphone is authentic, natural and appealing without losing the human voice permeability, rich and full feeling, high frequency, clarity and delicacy.



The box body is made of imported birch plywood with flashing blue paint to make the overall color change effect. It is very attractive with the LED light beacon. PK series gives people unprecedented enjoyment both visually and audibly, and brings unparalleled shock experience.





TECHNICAL DATE

TECHNICAL DATE PK-10 PK-12 PK-15
Type Two way full frequency speaker Two way full frequency speaker Two way full frequency speaker
Drivers LF:1 × 10 "65 core long stroke LF:1 × 12 "75 core long stroke LF:1 × 15 "75 core long stroke neodymium magnetic unit
  HF:1×1.7" HF:1 × 1.7 "neodymium magnet HF:1 × 3 "neodymium magnetic treble driver
Frequency Response 65Hz-18KHz 53Hz-20KHz 50Hz-20KHz
Rated Power 450W 650W 850W
Nominal Impedance 8 Ohm 8 Ohm 8 Ohm
Sensitivity(1W/1M) 98dB 102dB 103dB
Input Connectors 2×Speakon NL4MP 2×Speakon NL4MP 2×Speakon NL4MP
Dimensions(W×H×D) 320×540×360mm 360×590×415mm 440×690×465mm
Net Weight 18KG 25KG 27KG
Recommended AMP D-800 D-1000 D-1000

CONSTRUCTION DRAWING

PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches 0

Application scenario

PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches 1PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches 2PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches 3PK Series Two Way Full Frequency Speaker Birch Plywood Box Body 10 12 15 Inches 4



  •
