Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System

Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System

  • Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System
Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: FL-12、FL-118A
Contact Now
Detailed Product Description
Highlight:

Light Weight full range line array

,

Professinal full range line array

,

speaker 12 inch line array

FL-12,FL-118A



FL-12,FL-118A

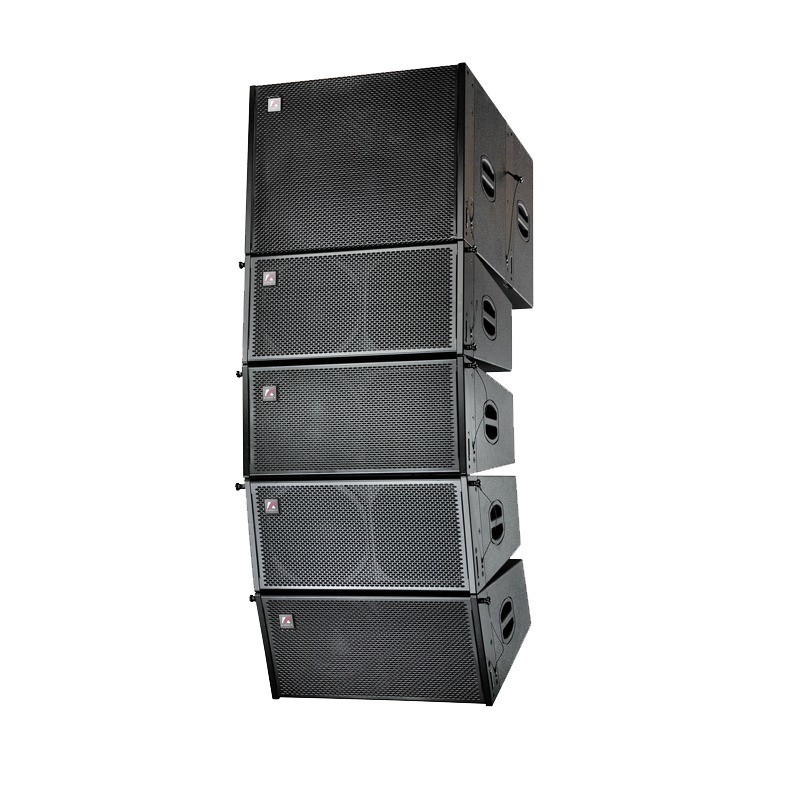

FL - 12 medium and small dichotomy line array system is characterized by small size, light weight, uniform sound field coverage, etc. The linear array speaker has wide frequency response, high sensitivity, long range, high sound pressure level, small sound interference, high sound amplification efficiency, and convenient hoisting, which makes the system have sound effects incomparable to sound columns and stage speakers. It can be hoisted and stacked on the ground, mainly used for live sound reinforcement, theater, concert, multi-function hall, outdoor performance and other activities.



The FL-118A is an 18 inch direct projection ultra-low speaker. The box is made of a cloth edge 18 inch bass unit, multi-layer composite plywood and polyurea spray The low-frequency performance is perfect; The suspension system is made of aluminum alloy, which can be hung and overlapped with FL-12 to improve the low-frequency performance of the system.





TECHNICAL DATE

TECHNICAL DATE FL-12 single 12 inch linear array FL-118A
Type Line array full-range speakers Linear array subwoofer
Drivers LF: 1 x 12" HF: 1 x 3" LF: 1 x 18 "/4 inch voice coil
Frequency Response 65Hz - 18kHz(±3dB) 35Hz - 150Hz(±3dB)
Rated Power 400W 800W
Nominal Impedance 8 Ohm 8 Ohm
Sensitivity(1W/1M) 98dB 103dB
Input Connectors 2xNL4 Speakon 2xNL4 Speakon
Maximum SPL 127dB 135dB
Dispersion(-6dB) 90°H x12°V /
Crossover 1.3 kHz /
Riggings Standard hanger Standard hanger
Dimensions(W×H×D) 635x315x445mm 635x500x665mm

CONSTRUCTION DRAWING

Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System 0

Application scenario

Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System 1Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System 2Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System 3Light Weight Professinal Audio Full Range Line Array Medium And Small Dichotomy Line Array System 4
