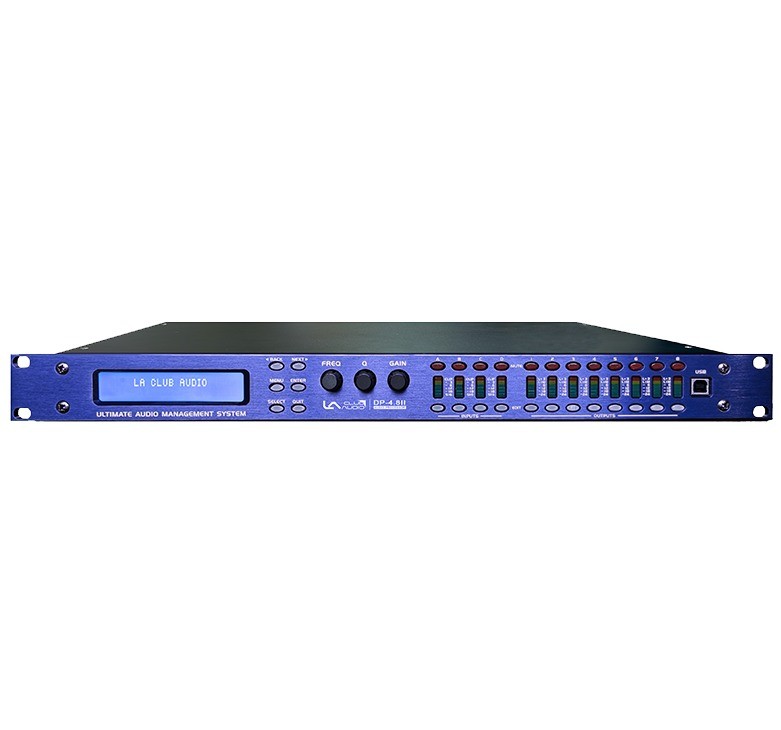

Name: DP4.8II 15 Segment PEQ Surround Sound Processor 4 Way 3 Way Electronic Balance
Brand: Guangzhou Yinqi Technology Co., Ltd.
SKU: DP4.8II
Availability: InStock

Home Products Electronic Peripherals

DP4.8II 15 Segment PEQ Surround Sound Processor 4 Way 3 Way Electronic Balance

Product Details:

Place of Origin:	KPARTY CHINA
Brand Name:	KPARTY
Model Number:	DP4.8II

Contact Now

Detailed Product Description

Highlight:

15 Segment surround sound processor

Electronic Balance surround sound processor

DP4.8II surround sound processor

Technical Parameter

TECHNICAL DATE	XT-600
Input section
Input interface	4-way, 3-way electronic balance
Impedance	10k ohms
Common Mode Rejection Ratio	> 65dB (50Hz to 10kHz)
Output section
Output Interface	8-way, 6-way electronic balance
Output impedance	< 60 ohms
Minimum load	600 ohms
Maximum level	+22 dBu
Performance parameters
Digital audio sample rate	192kHz
Frequency response	+/- 0.5dB (20Hz ~ 35kHz)
Distortion	<0.006% @1kHz, +4dBu
ADC Dynamic Range (A-Weighted)	114dB (20Hz ~ 20kHz)
DAC Dynamic Range (A-Weighted)	114dB (20Hz ~ 20kHz)
Input channel parameters
parametric balance	15 segment PEQ
Gain	-40dB to +6dB (0.1dB steps)
Delay	Input 1300ms
Graphic Equalizer GEQ	Section 31
Noise gate function	NoiseGate
Output channel parameters
Parametric balance	15 segment PEQ
Gain	-40dB to +15dB (0.1dB steps)
Phase	+/-
Delay	Output 680ms
Signal routing	A, B, C, D
Channel name	8 characters long
Multifunctional filter
Filter type	HiShelf-6dB, HiShelf-12dB,HiShelf-Q
	LoShelf-6dB,LoShelf-12dB, LoShelf-Q
	Allpass-90, Allpass-180,Bandpass
	Notch.Highpass VariQ, Lowpass VariQ
Frequency Range	20Hz ~ 32.5kHz, (1Hz steps)
Gain	-30dB to +15dB, (0.1dB steps)
Bandwidth / Q	0,0078 to 2.52 octaves (Q=0.5 to 128)
Crossover filter
Frequency Range	20Hz ~ 32.5kHz, (1Hz steps)
Slope Type	Butterworth, Linkwitz Riley, Bessel
Slope range	6/12/18/24/36/48dB/Octave
Output limiter
Threshold value	-10 to +22 dBu
Start Time	0,3ms to 90ms
Release time	100ms to 2 second
System parameters
Maximum number of supported user stores	50
Delay unit	ms, m
System lock	Various types of password locks can be set
Display	2 x 20 character LCD
level indicator	6 segment digital tube display
Level indication mode	level or limiter attenuation
Channel linkage control	Support
LCD contrast adjustment	Support
LED brightness adjustment	Support
Extended Simple Remote Communication Protocol	Support
Firmware upgrade	Support
Connector
Audio input and output connector type	4 pin XLR
USB	Square port USB holder
RS-232	DB-9 female seat
RS-485	XLR
Power supply	Standard IEC socket
Other
Power requirements	~220 VAC transformer
Size	44 x 482 x 285 mm
Weight	4.5Kg
