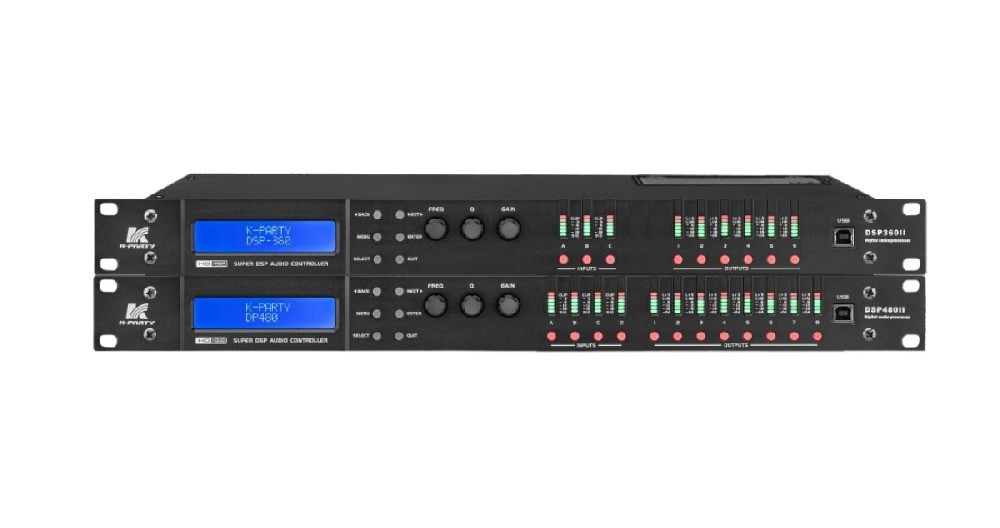

192kHz Digital Sampling Rate Audio Processor 35kHz High Frequency DSP-360II

192kHz Digital Sampling Rate Audio Processor 35kHz High Frequency DSP-360II

  • 192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II
192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: DSP-360II
Contact Now
Detailed Product Description
Highlight:

Audio Processor 35kHz

,

High Frequency Audio Processor

,

35kHz surround sound processor

DSP-360II Audio Processor



DSP-360II Audio Processor

Based on the powerful DSP digital audio processor, it is an ideal choice for engineering installation and application. It combines the functions of traditional equipment and has the ability of remote control. It is especially suitable for dispatching rooms, audio rooms, bars, hi rooms, and performance and sound reinforcement systems.

Exceptional sound quality Based on 192kHz digital sampling rate, it provides audio bandwidth above 35kHz High frequency resolution is exquisite, and the frequency domain is expanded widely, which can truly restore audio content It supports linkage adjustment between channels, optional security lock setting, and extended simple remote communication protocol.



TECHNICAL DATE

TECHNICAL DATE DSP-360II
Input channel and socket 3-way XLR female XLR seat
Output channel and socket 6-way XLR male XLR seat
Input impedance Balance: 10K Ω
Output impedance <60Ω
Digital audio sampling rate 96kHz
Common analog system ratio >75dB (50Hz to 10kHz)
Input gain -40dB to +6dB (0.1dB steps)
Frequency response 20Hz-20KHz(-0.5dB)
Graphic equalizer Paragraph 31
Distortion degree < 0.004% (1kHz, +15dBm)
ADC dynamic range (A-Weighted) 114dB (20Hz ~ 20kHz)
DAC dynamic range (A-Weighted) 114dB (20Hz ~ 20kHz)
Output gain -40dB to +15dB (0.1dB steps)
Input delay Maximum 1500ms (515,1m)
Output delay Maximum 1500ms (515,1m)
Maximum number of user stores supported 50
Minimum load 600 ohms
Maximum level +20dBu
Power Supply AC 90-245V 50/60Hz
Product size(W×H×D) 482×285×44mm
Net weight 4.5kg

CONSTRUCTION DRAWING





Application scenario

192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II 0192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II 1192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II 2192kHz Digital Sampling Rate Audio Processor  35kHz High Frequency DSP-360II 3
