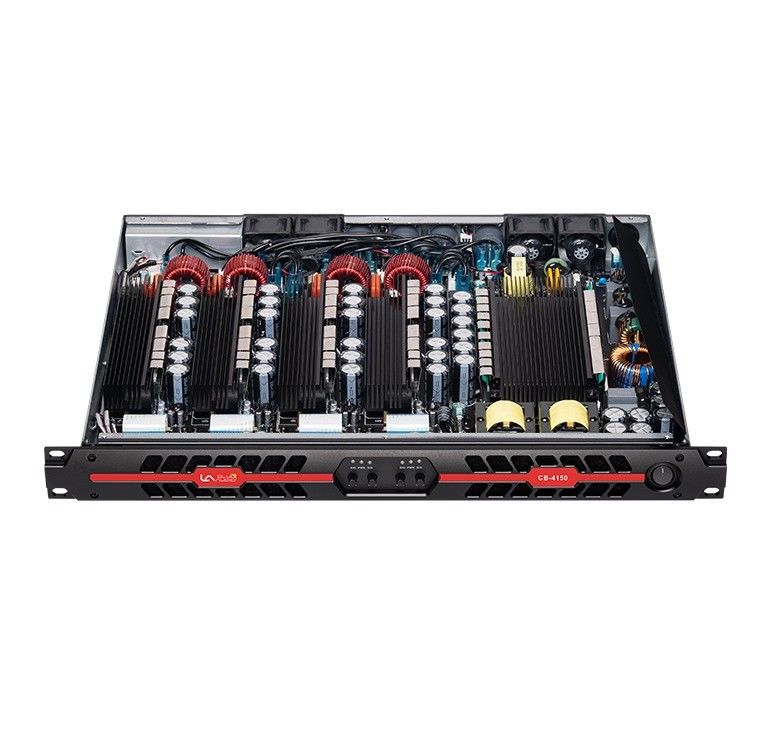

Name: CB-2500/CB-4150 Class D Professional Stereo Power Amplifier / High Power Amplifier
Brand: Guangzhou Yinqi Technology Co., Ltd.
SKU: CB-2500/CB-4150
Availability: InStock

Home Products Professional Power Amplifier

CB-2500/CB-4150 Class D Professional Stereo Power Amplifier / High Power Amplifier

Product Details:

Place of Origin:	KPARTY CHINA
Brand Name:	KPARTY
Model Number:	CB-2500/CB-4150

Contact Now

Detailed Product Description

Highlight:

Class D professional stereo power amplifier

Class D high power amplifier

high power professional stereo power amplifier

Technical Parameter

TECHNICAL DATE	CB-2500	CK-4150
8Ω Stereo power	2450W×2	1350W×4
4Ω Stereo power	4000W×2	2300W×4
16Ω Bridge power	4900W	2700W×2
8Ω Bridge power	8000W	4600W×2
RMS output voltage (THD=1%, 1KHz)138.6V；	138.6V；
Frequency response	20Hz-20KHz/±0.35dB
Signal-to-noise ratio (weighted)	＞105dB
Crosstalk suppression	(Lower than rated power, 20Hz～1KHz, 8Ω)≧90dB;
Damping coefficient	Typical value 500
Input sensitivity	32dB, 35dB, 38dB, 41dB can be selected
Input resistance	10KΩ Balance/20KΩ UNbalance
Input connection	XLR Active balanced/ pin1 gnd/ pin2+/ pin3-
Output connection	2Neutrik Nl4 Sockets/2 input posts
Protect	Short circuit,DC ,overheat,overlord,ultrasonic,RF,voltage peak limit
Operating voltage	220V-260V available
line	Class D
Body size (H×W×D)	45×483×370
Net weight	9Kg	9Kg
