Name: high power beautiful sound Professional Power Amplifier DC VHF clipping protection
Brand: Guangzhou Yinqi Technology Co., Ltd.
SKU: CK-1000/CK-1300/CK-1600/CK-4100/CK-4130/CK-4160
Availability: InStock

Home Products Professional Power Amplifier

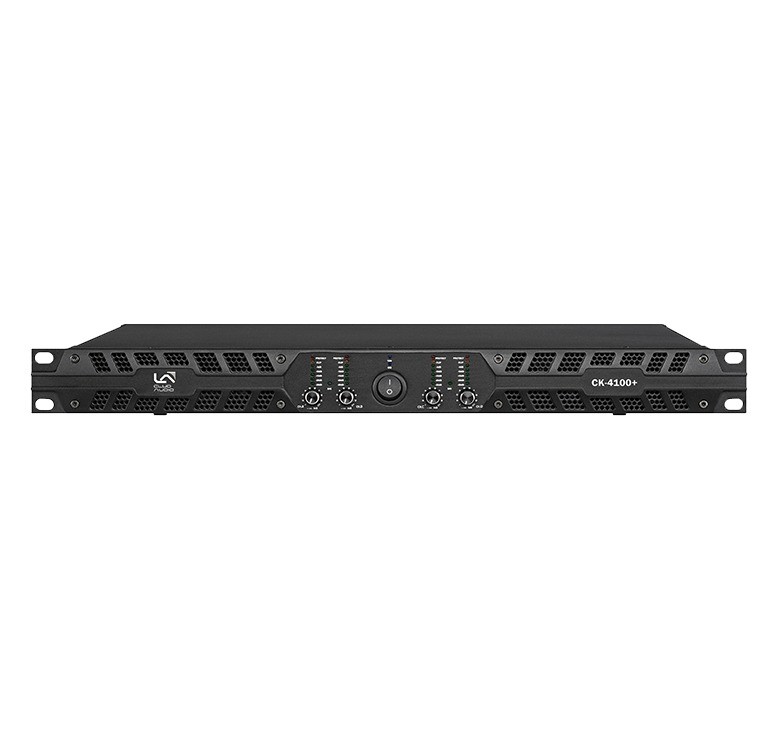

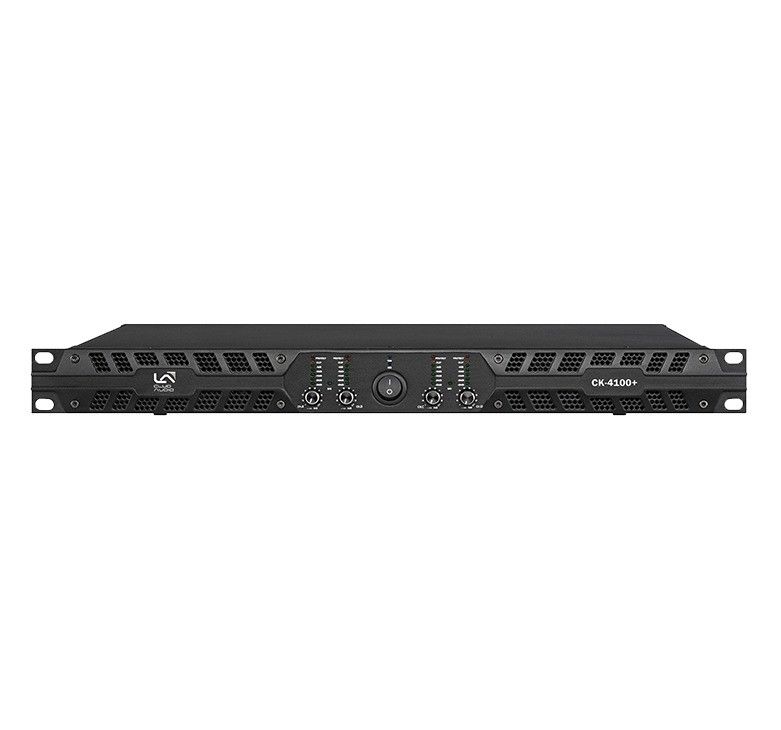

high power beautiful sound Professional Power Amplifier DC VHF clipping protection

Product Details:

Place of Origin:	KPARTY CHINA
Brand Name:	KPARTY
Model Number:	CK-1000/CK-1300/CK-1600/CK-4100/CK-4130/CK-4160

Contact Now

Detailed Product Description

Highlight:

beautiful sound Professional Power Amplifier

beautiful sound professional power amplifier

high power Professional Power Amplifier

Real-time output signal measurement and processing to obtain the actual instantaneous output power; collect all data and compare the effective stored energy and effective power obtained from the power supply to avoid system deviations such as overvoltage, overcurrent/short circuit, etc.

Harmful signal protection: DC protection, VHF protection, clipping protection

With high power, light weight and beautiful sound quality, it is widely used in various touring performances, bars, discos, high-end nightclubs, and is the first choice for first-class system designers and sound engineers.

Technical Parameter

TECHNICAL DATE	CK-1000	CK-1300	CK-1600	CK-4100	CK-4130	CK-4160
8Ω Stereo power	1100W×2	1300W×2	1600W×2	1100W×4	1300W×4	1600W×4
4Ω Stereo power	1830W×2	2150W×2	2650W×2	1830W×4	2150W×4	2650W×4
2Ω Stereo power	2700W×2	3200W×2	3950W×2	2700W×4	3200W×4	3950W×4
8Ω Bridge power	2200W	2600W	3200W	2200W×2	2600W×2	3200W×2
4Ω Bridge power	3600W	4300W	5300W	3600W×2	4300W×2	5300W×2
2Ω Bridge power	5000W	6000W	7000W	5000W×2	6000W×2	7000W×2
Frequency response	20Hz-20KHz/±0.35dB
Total Harmonic Distortion + Noise		＜0.5%@8Ω1KHz
Signal-to-noise ratio (weighted)		＞99dB
Channel isolation (1KHZ)	＞70dB
Slew rate	＞30v/us
Damping coefficient	＞5000(8Ω) 20Hz-100Hz
Voltage gain	41.7dB	42.5dB	43.3dB	41.7dB	42.5dB	43.3dB
Input sensitivity	0.775V,1V, 1.4V, 4V
Input resistance	10KΩ Balance/20KΩ UNbalance
Input connection	XLR Active balanced/ pin1 gnd/ pin2+/ pin3-
Output connection	2Neutrik Nl4 Sockets/2 input posts
Protect	Short circuit,DC ,overheat,overlord,ultrasonic,RF,voltage peak limit
Operating voltage	110V/220V available
Insurance	F-20A	F-25A	F-25A	F-25A	F-30A	F-30A
Static power	＜95W	＜100W	＜107W	＜130W	＜145W	＜155W
Maximum power consumption	＜2000W	＜2500W	＜3000W	＜4000W	＜5000W	＜6000W
line	Class D
Body size (H×W×D)	45×483×420
Package size (H×W×D)	73×580×478
Net weight	7.2Kg	7.2Kg	7.3Kg	8.2Kg	8.3Kg	8.5Kg
Total package weight	8.3Kg	8.3Kg	8.4Kg	9.2Kg	9.6Kg	9.8Kg
