15 inch 2 way audio system Linear Array Speaker 8 Ω LA-C15

15 inch 2 way audio system Linear Array Speaker 8 Ω LA-C15

  • 15 inch 2 way audio system Linear Array Speaker 8 Ω  LA-C15
15 inch 2 way audio system Linear Array Speaker 8 Ω  LA-C15
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: LA-C15
Contact Now
Detailed Product Description
Highlight:

15 inch Linear Array Speaker

,

2 way Linear Array Speaker

,

8 Ω Linear Array Speaker

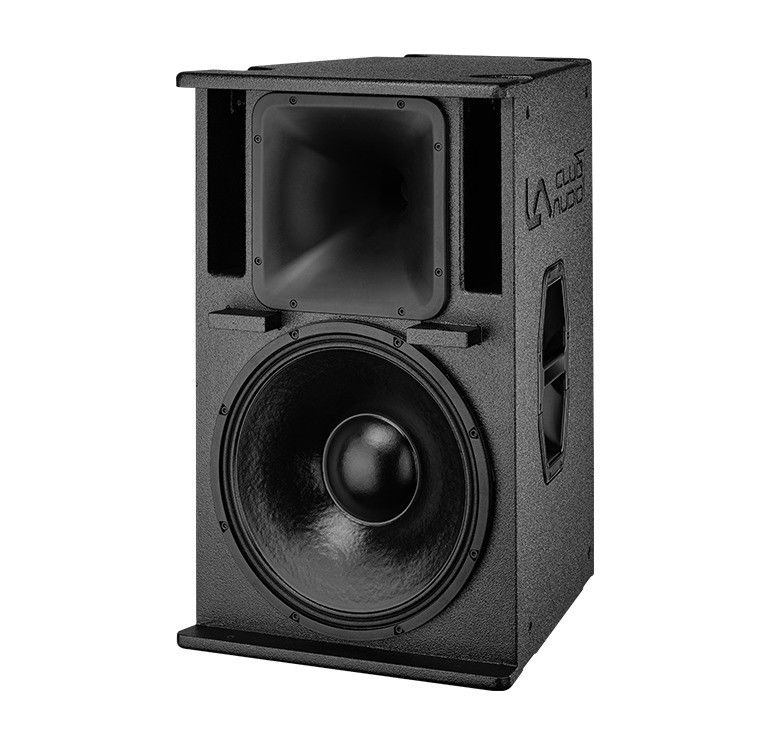

LA-C15 is a 15-inch 2-way audio system, specially tailored for high-end occasions such as party rooms and bars. The interior uses a 15-inch high-efficiency NdFeB woofer with a 3-inch tweeter driver. After careful adjustment by the designer, the overall performance is excellent. The box body is made of multi-layer birch board, and the surface is made of polyurea environmental protection paint, which is durable and high-end atmosphere.

The electro-acoustic system is designed with the acoustic characteristics of the computer anti-true electro-acoustic physical structure. After many repeated tests and experiments, the system has high stability, wide low frequency, rounded intermediate frequency, clear and delicate high frequency and high efficiency.





Technical Parameter
TECHNICAL DATE LA-C15
Frequency response 45Hz-20KHz
Drivers LF: 1x15", HF: 1x3"
RMS Power 750W
Nominal Impedance 8 Ω
Sensitivity 105dB
Max.SPL 134dB
Crossover 1.3KHz
Connectors Neutrik
Hanging Mode Horizontal/vertical hanging, M8 screw
Weight 32KG



Schematic
