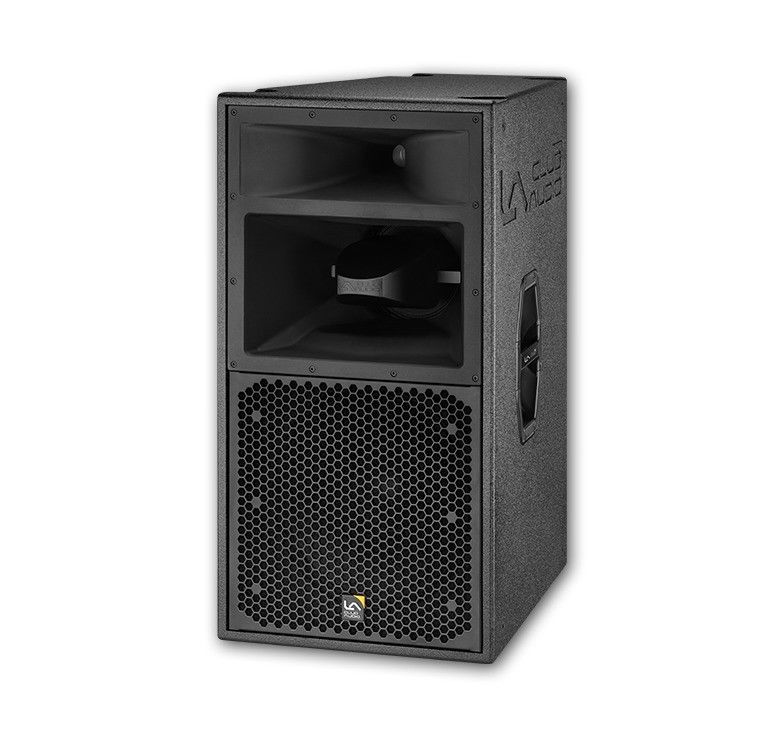

Multi Functional Professional Grade Linear Array Speaker 43Hz-20KHz LA-155

Multi Functional Professional Grade Linear Array Speaker 43Hz-20KHz LA-155

  • Multi Functional Professional Grade Linear Array Speaker 43Hz-20KHz LA-155
Multi Functional Professional Grade Linear Array Speaker 43Hz-20KHz LA-155
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: LA-155
Contact Now
Detailed Product Description
Highlight:

43Hz Linear Array Speaker

,

20KHz Linear Array Speaker

,

Multi Functional Linear Array Speaker



LA-155 is a three-way matrix column multi-functional professional grade speaker with medium and high range, high efficiency, wide  coverage angle and high-power sound pressure level. The middle and high pitches are equipped with a horn-loaded type,  with a 3-inch high-power high-frequency driver and an 8-inch largediameter mid-range unit transducer, combined with a special midfrequency horn phase plug to correct the mid-frequency phase to  make it have a higher transmission distance and sound pressure  level, and the spread angle Wide width, wide coverage. The midbass speaker is loaded with lightweight, high-power and highefficiency NdFeB and combined with a hidden phase-conductor  design, and the mid-bass unit can be flexibly controlled by an  external processor to give full play to the unique performance of  high-quality units. Through computer anti-true inverter tube and acoustic concept  design, after many field demonstrations and tests, the LA-155  speaker has fine and clear high frequency, transparent intermediate  frequency, thick and flexible medium and low frequency, and  accurate sound phase positioning.  The assembled combination of multiple LA-155 speakers makes it  have strong projection distance, coverage angle and sound  pressure level and other characteristics





Technical Parameter
TECHNICAL DATE LA-155
Frequency response 43Hz-20KHz
Drivers LF: 1x15", MF:1x8"HF: 1x3"
RMS Power 1000W
Nominal Impedance 8 Ω
Sensitivity 128dB
Max.SPL 158dB
Crossover 300HZ  1.8KHz
Connectors Neutrik
Hanging Mode Horizontal/vertical hanging, M8 screw
Weight 50KG



Schematic
