10 inch Active Line Array Speakers Full Frequency Speaker Ultra Low Speaker Three channel V-10/V-18

10 inch Active Line Array Speakers Full Frequency Speaker Ultra Low Speaker Three channel V-10/V-18

  • 10 inch Active Line Array Speakers Full Frequency Speaker Ultra Low Speaker Three channel V-10/V-18
10 inch Active Line Array Speakers Full Frequency Speaker Ultra Low Speaker Three channel V-10/V-18
Product Details:
Place of Origin: KPARTY CHINA
Brand Name: KPARTY
Model Number: V-10/V-18
Contact Now
Detailed Product Description
Highlight:

Ultra Low Line Array Speakers

,

Full Frequency Line Array Speakers

,

10 Inch active line array speakers

V-10/V-18 Active Line Array Speakers



V-10/V-18 Active Line Array Speakers

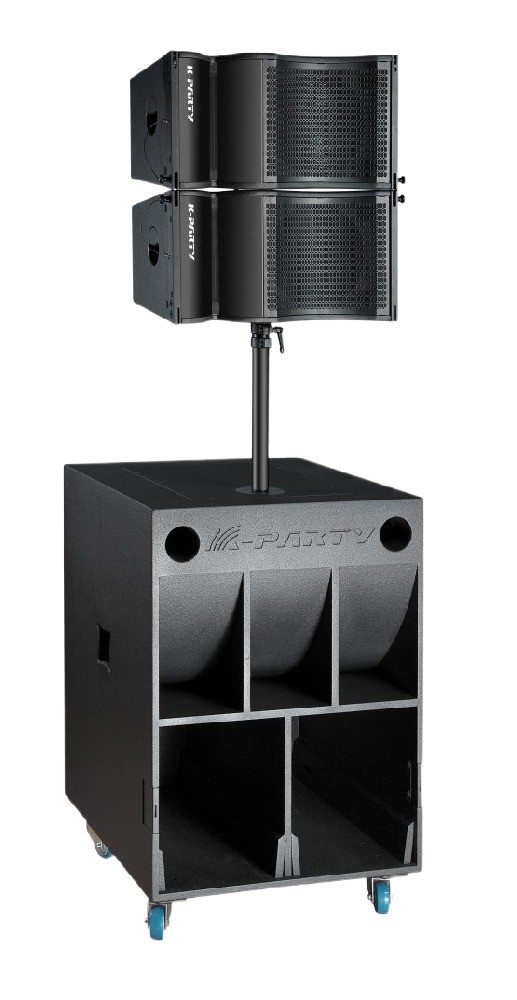

The V series active linear array system is a set of top quality products tailored for mobile performances, which perfectly combines acoustics, aesthetics, structure and practicality. Main box V-10 is

A 10 inch linear array full frequency speaker, small and exquisite, surging and surging, can flexibly adjust the angle to balance the left and right sound fields, reflecting a wider range. V-118 ultra-low speaker adopts fan Palace reflective design, built-in HIFI power amplifier module (with DSP) with 1200W+400W × 2 Three channel power output, output channel signals can be connected in series. Special box The design can accommodate two V-10 speakers, which is convenient for transportation and flexible for installation. The combination of dynamic and static provides a perfect integrated solution.





TECHNICAL DATE

TECHNICAL DATE V-10 V-118
Type Linear array full frequency speaker Linear array ultra-low speaker
Drivers LF: 1 x 10" HF: 1 x 3" LF: 1 x 18"
Frequency Response 65Hz - 18kHz(±3dB) 35Hz - 250Hz(±3dB)
Rated Power 350W 850W
Nominal Impedance 8 Ohm 8 Ohm
Sensitivity(1W/1M) 105dB 100dB
Input Connectors 2xNL4 Speakon 2xNL4 Speakon
Maximum SPL 128dB 125dB
Dispersion(-6dB) 90°H x14°V /
Crossover 1.35 kHz /
Riggings Standard hanger Standard hanger
Dimensions(W×H×D) 540x305x350mm 680x1020x690mm

CONSTRUCTION DRAWING
