Place of Origin: | KPARTY CHINA |
Brand Name: | KPARTY |
Model Number: | HC Series |
Highlight: | Home hc series Subwoofer,Home cinema subwoofer,HC Series Cinema Subwoofer |
---|

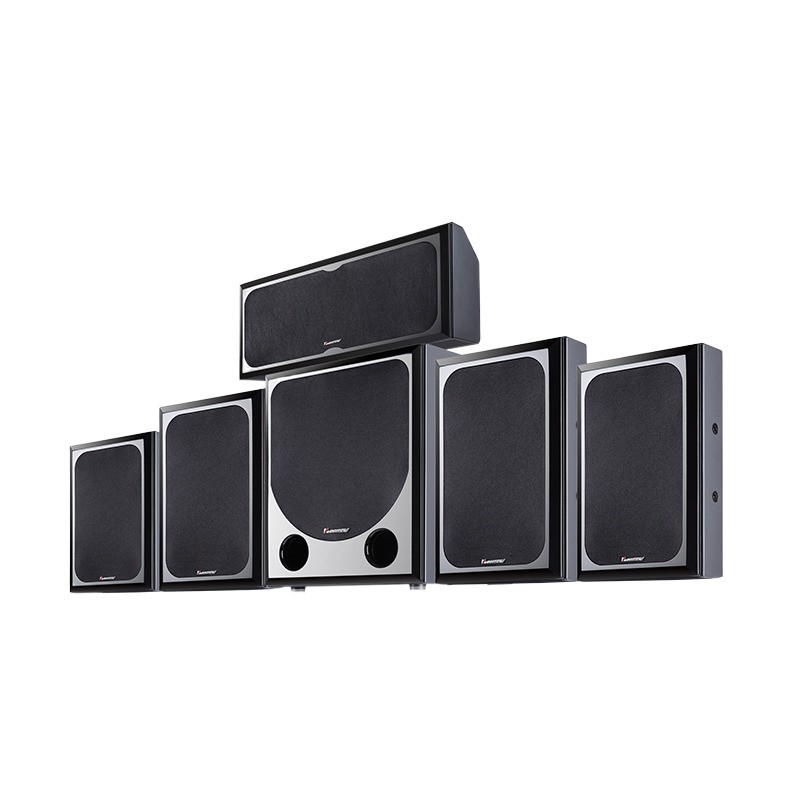

Committed to the pursuit of outstanding voice. The speakers use the highest quality components and detailed acoustic design to give you an excellent high fidelity system.
The powerful bass and the perfectly extended ultrahigh pitch make you realize the perfect performance of the product, which will be the sound effect experience you desire every day.
>> Framework type internal frame support design, fast elimination of reflected standing wave inside the box;
>> New customized mid bass speaker with full sound line;
>> A new generation of high-frequency polyester film compression driver, delicate and sweet;
>> Precise and efficient radiation horn design, evenly covering the sound field;
>> The extremely simple crossover network design of the loudspeaker reduces the original sound pollution to a very low level.
TECHNICAL DATE | HC-8 | HC-6 | HC-6C | HC-12D |
Type | Main box of cinema | Main box of cinema | Mid box of cinema | Cinema subwoofer |
Drivers | LF:1×8" | LF:1×6.5" | LF:1×6.5" | 1 × 12 "50 core dual magnetic steel |
HF:1 × 25 cores | HF:1 × 25 cores | HF:1 × 25 cores | ||
Frequency Response | 35Hz-20KHz | 45Hz-20KHz | 50Hz-20KHz | 30Hz-2KHz |
Rated Power | 200W | 150W | 200W | 400W |
Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
Sensitivity(1W/1M) | 90dB | 89dB | 91dB | 90dB |
Connector | Press the terminal | Press the terminal | Press the terminal | Press the terminal |
Dimensions(W×H×D) | 263×385×151mm | 230×345×151mm | 536×230×151mm | 382×455×444mm |
Packing Dimensions | 435×478×358mm | 430×438×320mm | 622×330×245mm | 535×470×535mm |
Net Weight | 6.3KG | 5.7KG | 7.7KG | 18.3KG |
Gross Weight | 14KG/box (two) | 12.5KG/box (two) | 8.7KG | 19.5KG |
